Electric Fly Killers
Fly Killer Explanation
Text will be aded here when it will be provided.
UV Tube
General UV Tube explanation text

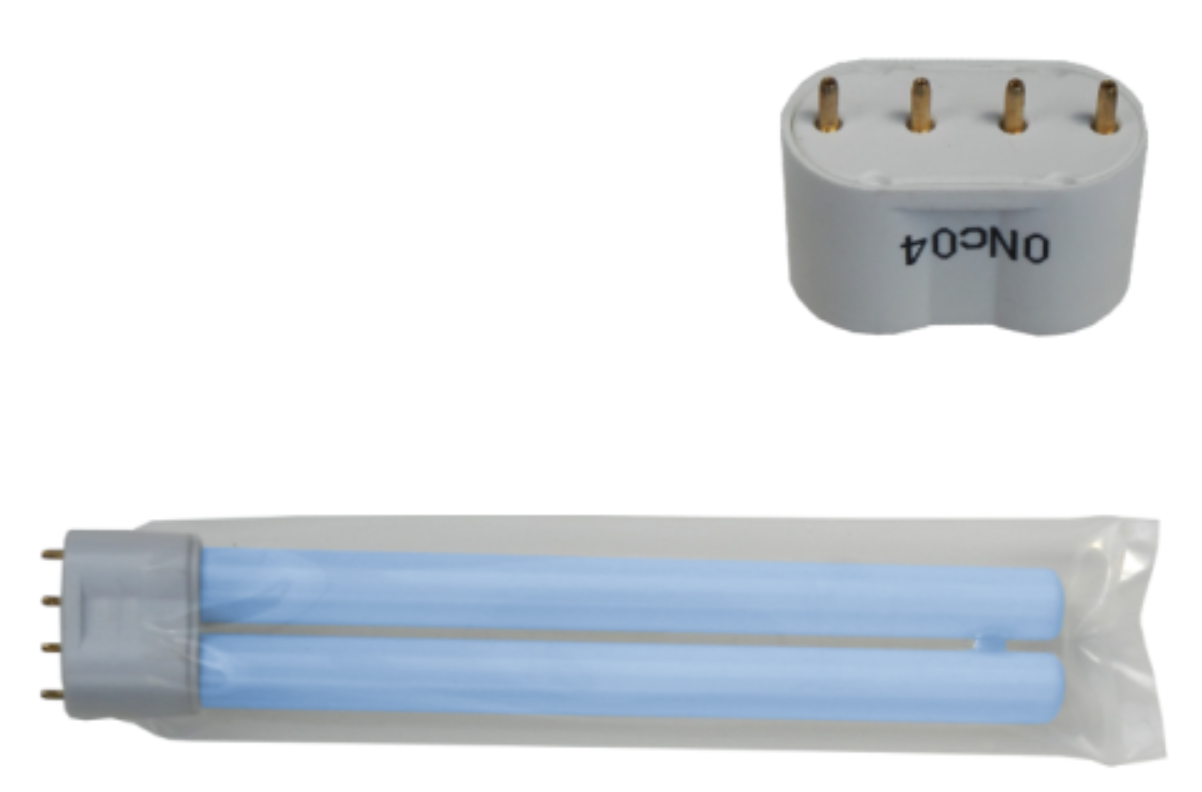

Fluorescent UV Tubes

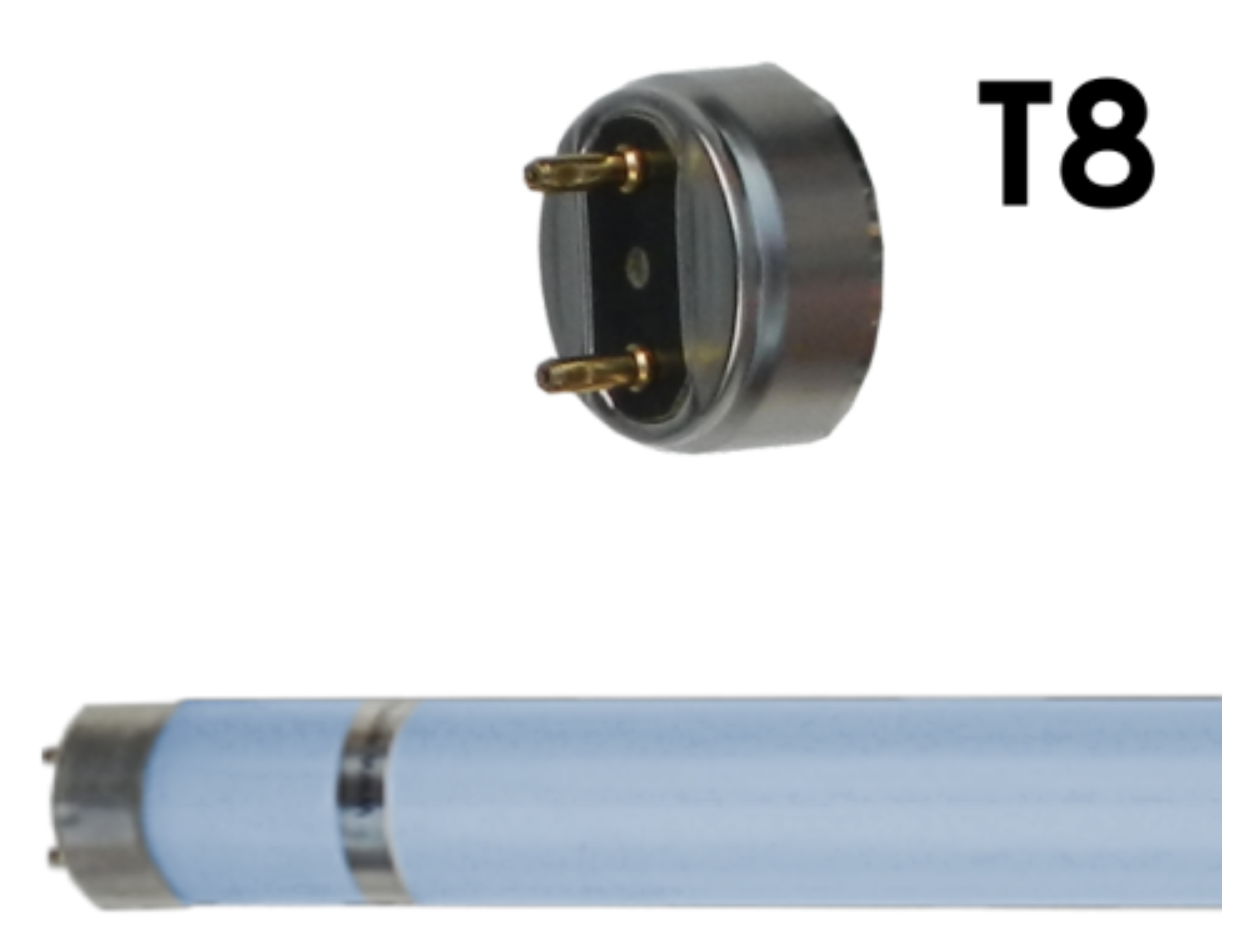

- T8 – 15 Watt

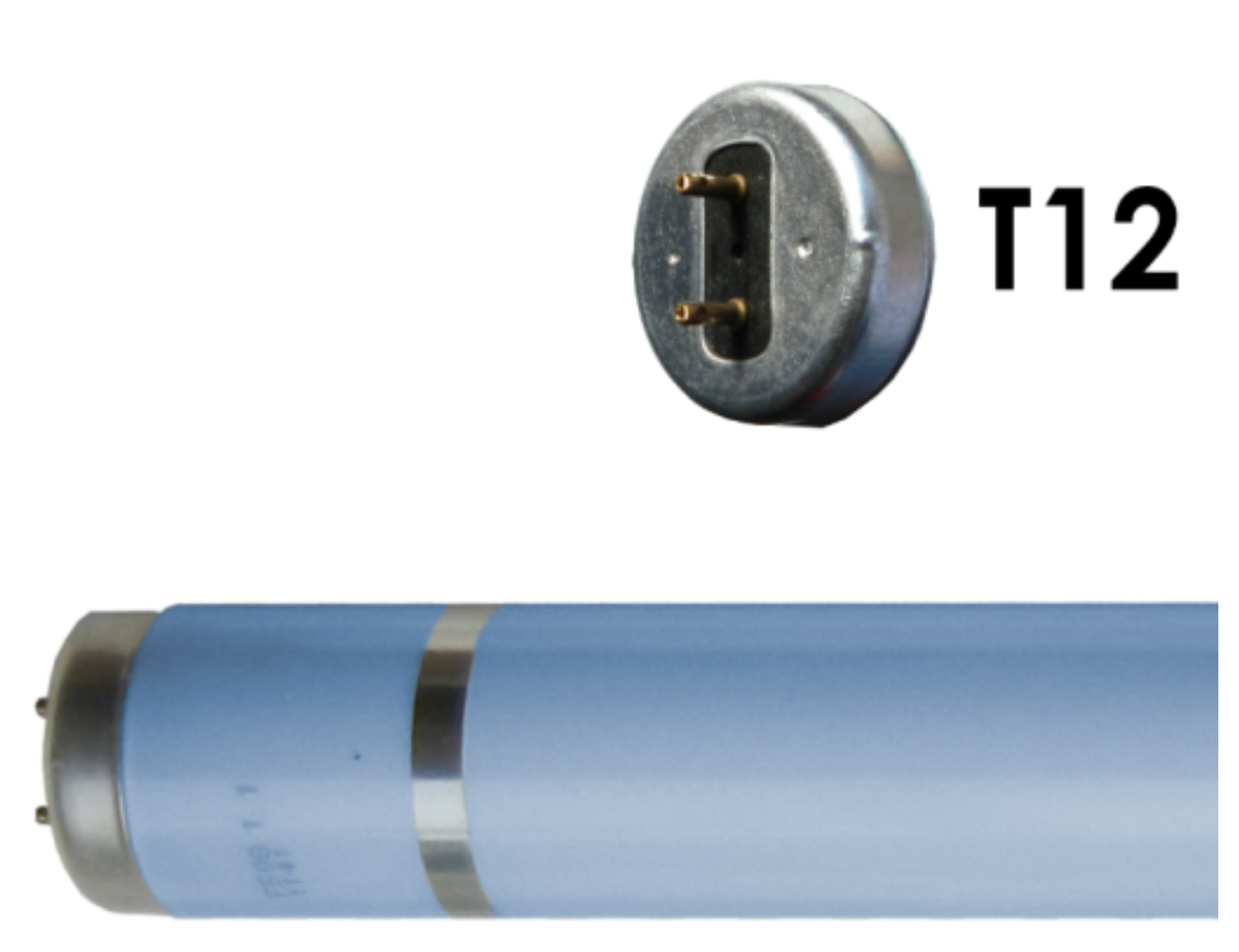

- T12 – 20 Watt
LED UV Tubes
- 3 Watt
- 4 Watt
- 5 Watt
LED Fly Killers
- FG05SS – GLU-5 with one 4W LED shatter resistant lamp
- FG10SS – GLU-10 with two 4W LED shatter resistant lamps
- FG15SS – GLU-15 with two 5W LED shatter resistant lamps
- LS04LS-W – 4W LED SE shatter resistant lamp (18”)
- LS05LS-W – 5W LED SE shatter resistant lamp (24”)
- MG6TRA-Y – Glue boards (pack of 6) for GLU-5 & GLU-10
- MG15TRA-Y – Glue board (pack of 6) for GLU-15
- Conforms to IP65 for water and dust protection
- Suitable for wall mounting or free standing
- Screws and wall plugs supplied
- W 662mm × H 265mm × D 100mm
- W 510mm × H 265mm × D 100mm
- W 510mm × H 190mm × D 100mm
- FG8SSS – GLU-80 LED (Suspended)
- FG8WSS – GLU-80 LED (Wall Mounted)
- LS05LS-W – 5W LED SE shatter resistant lamp (24”)
- MG8TRA-Y – Glue boards (pack of 6)
- Conforms to IP65 for water and dust protection
- Screws and wall plugs or chain supplied
- FGVLSA – Vanquish LED with shatter resistant lamps
- LS04LS-W – LED lamp 18x1 (2 required)
- MGVTR2 – Glue board pack of 6
- Conforms to IP65 for water and dust protection
- Screws and wall plugs or chain supplied
- Coverage: Approx. 90 sq. metres
- Voltage: 110–230V, 50–60Hz
- Total Watts: 6W
- Driver: In the lamp
- Backlight Lamp: 2 × 3W LED UVA
- Finish: Grained stainless
- Construction: 430 stainless steel
- Guarantee: 5 years (except lamps & glue board)
- Width: 35 cm
- Height: 26 cm
- Depth: 15 cm
- Weight: 3 kg
- Actual Size: W 34.5 × H 25.5 × D 12 cm
- FGL5SS – Fly Shield 5 LED (Shatter resistant lamps)
- FGL5SC – Fly Shield 5 LED Coffee lamps
- FGL5SL – Fly Shield 5 LED Lunch lamps
- LS03LS-W – Shatter resistant lamp (2 required)
- MG1TRA – Glue boards (Pack of 6)
- FGL6SS – Fly Shield 6 with 2 shatter resistant lamps
- FGL7SS – Fly Shield 7 with higher capacity glue tray
- LS04LS-W – LED Lamp (shatter resistant, 2 required)
- MG2TRA – Glue boards (pack of 6, 2 required for Fly-Shield 7)
GLU-5, GLU-10 & GLU-15 LED
The manufacturer reserves the right to change specifications without prior notice.
Flying insects are attracted to the Insect-a-clear GLU machine by high output LED UV lamps. These lamps have their starters built into the lamp, giving you a “new” machine with each lamp change.
Removing the glue board is quick and easy, allowing simple monitoring by a pest controller or hygiene manager.
| Specification | GLU-5 | GLU-10 | GLU-15 |
|---|---|---|---|
| Approx. Coverage | Up to 75 sq. metres | Up to 100 sq. metres | Up to 150 sq. metres |
| Voltage | 110–230V AC, 50/60 Hz | ||
| Total Wattage | 4W | 8W | 10W |
| Lamp Type | 18” T8 7W LED SE | 18” T8 7W LED SE | 24” T8 9W LED SE |
| Lamps Required | 1 | 2 | 2 |
| Construction | Grained Stainless Steel 304 | ||
| IP Rating | IP65 | ||
| Packing Details | 20 × 11 × 55 cm (2.8kg) | 27 × 11 × 55 cm (3.5kg) | 28 × 11 × 71 cm (4.2kg) |
Approved to EN 60335-2-59 and related standards. Tested to clauses 15.1 & 22.1.
Guarantee: 5 years (excluding lamps and glue boards)
GLU-80 LED
The manufacturer reserves the right to change specifications without prior notice.
There are two models of the Insect-a-clear GLU-80 machine: suspended and wall mounted. The suspended model uses two 5W high output LED lamps, while the wall mounted version uses one.
Flying insects are attracted by the high output LED UV lamps. These lamps have their starters built into the lamp, so when the lamp is changed, the unit performs like a new machine.
Removing the glue board is quick and easy, allowing simple monitoring by a pest controller or hygiene manager.
Suspended Model
W 660mm × H 245mm × D 245mm
Wall Mounted Model
W 660mm × H 245mm × D 245mm
| Specification | FG8SSS (Suspended) | FG8WSS (Wall Mounted) |
|---|---|---|
| Approx. Coverage | Up to 200 sq. metres | Up to 100 sq. metres |
| Voltage | 110–230V AC, 50/60 Hz | |
| Total Wattage | 10W | 5W |
| Lamp Type | 24” T8 5W LED Single Ended | 24” T8 5W LED Single Ended |
| Lamps Required | 2 | 1 |
| Construction | Grained Stainless Steel 304 | |
| IP Rating | IP65 | |
| Packing Details | 70 × 27 × 27 cm — 5.5 kg | 70 × 27 × 27 cm — 5.0 kg |
Approved to EN 60335-2-59:2003 and EN 60335-1:2012 with applicable amendments. Tested to clauses 15.1 and 22.1.
Guarantee: 5 years (excluding lamps and glue boards)
Vanquish
The manufacturer reserves the right to change specifications without prior notice.
The VANQUISH LED is a slim line, discreet yet very efficient glue board fly killer with a removable front door for easy installation or cleaning.
It is fitted with 2 x 4 watt high attraction LED By combining the above features with a super size glue board of over 1,240 cm2 (complete with monitoring squares), the VANQUISH is a truly effective fly control unit, protecting up to 200 square metres.
Its anodised aluminium and steel construction means that it not only looks good but also offers excellent corrosion resistance. Now with IEC socket for easier installation.
VANQUISH LED
Actual size W 41 x H 48 x D 7.5 cm
| Specification | FGVLSA |
|---|---|
| Approx. Coverage | Up to 100 sq. metres |
| Voltage | 110-230v 50-60Hz |
| Total Wattage | 8W |
| Lamp Driver | Built into lamp |
| Backlight lamp | LED Single ended 2 x 4w UVA |
| Construction | Grained Stainless Steel 304 |
| Finish | Anodised aluminium front and a black chassis |
| Construction | Zintec coated steel chassis powder coated black & aluminium front. |
| Approved | EN 60335-2-59:2003 + A1:06 + A2:09+A11:18 with EN 60335-1:2012+A11:14+A13:17+A1:19+A14:19+A2:19+A15:21 |
| Guarantee | 5 years (except lamps and glue board).Terms and conditions apply |
Approved to EN 60335-2-59:2003 and EN 60335-1:2012 with applicable amendments. Tested to clauses 15.1 and 22.1.
Guarantee: 5 years (excluding lamps and glue boards)
Fly Shield 5
Discreet LED Flying Insect Control Unit
The Insect-a-clear Fly Shield 5 LED is a discreet alternative to high voltage grid machines. With its two ultra-low power LED lamps, it uses approximately 25% less wattage compared to the original Fly-Shield 1.
Ideal for front of house flying insect control where discreet management is required.
Fly Shield 6 & 7
Insect-a-clear LED Fly Control Units
The Insect-a-clear Fly-Shield 6 LED is a discreet alternative to high voltage grid machines. With two ultra low power LED lamps, it uses less than 20% of the original Fly-Shield 2’s wattage.
For higher infestation areas, the Fly-Shield 7 uses the same chassis as the Fly-Shield 6 but is supplied with a double size glue tray and is designed as a suspended machine.
Specifications
| Coverage | Approx. up to 200 sq. metres |
|---|---|
| Voltage | 110–230V, 50–60Hz |
| Total Watts | 8W |
| Driver | In the lamp |
| Backlight Lamp | 2 × 4W LED |
| Finish | Grained stainless |
| Construction | 430 stainless steel |
| Guarantee | 5 years (except lamps and glue board) |
Approved to EN 60335-2-59:2003 + A1:06 + A2:09 + A11:18
EN 60335-1:12 + A11:14 + A13:17 + A1:19 + A14:19 + A2:19 + A15:21
Packing Details
| Model | Length | Width | Height | Weight |
|---|---|---|---|---|
| FGL6SS | 60 cm | 26.5 cm | 17 cm | 4 kg |
| FGL7SS | 60 cm | 48 cm | 17 cm | 6.5 kg |
Order Codes
Replacement Order Codes
Actual Sizes
Fly-Shield 6
W 60 × H 25.5 × D 12 cm
Fly-Shield 7
48 × 65 × 12 cm
The manufacturer reserves the right to change specifications without prior notice. Terms and conditions apply.
Fluorescent Fly Killers (Discontinued)
Product Description
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
- GLU-5
- GLU-60
- GLU-90
- FG1CBS – Fly Shield 1 with 1 standard lamp
- FG1CSS – Fly Shield 1 with 1 shatter resistant lamp
- LL18WX – Lamp (standard)
- LL18WS – Lamp (shatter resistant)
- MG1TRA – Glue boards (pack of 6)
- Fly Shield 2
- FG2CBS – Fly Shield 2 with 2 standard lamps
- FG2CSS – Fly Shield 2 with 2 shatter resistant lamps
- LL18WX – Lamp (standard)
- LL18WS – Lamp (shatter resistant)
- MG2TRA – Glue boards (pack of 6)
- Coverage: Up to 100 sq. metres
- Voltage: 230V
- Total Watts: 40W
- Ballast: Electronic
- Backlight Lamp: 2 × 18W UVA
- Finish: Powder coated white or bright annealed stainless steel
- Construction: Zintec steel (white) or 304 stainless steel
- Guarantee: 2 years (except lamps & glue boards)
- Width: 51.5 cm
- Height: 39.5 cm
- Depth: 10 cm
- Weight: 5 kg
- FGF2SW – FUSION-2 White with shatter resistant lamp
- FGF2SS – FUSION-2 Stainless with shatter resistant lamp
- LL18WX – Standard Lamp
- LL18WS – Shatter resistant lamp
- MGFTR2 – Glue boards (Pack of 6)
- Coverage: Up to 280 sq. metres
- Voltage: 230V
- Total Watts: 80W
- Ballast: Electronic
- Backlight Lamp: 4 × 18W UVA
- Finish: Powder coated white or bright annealed stainless steel
- Construction: Zintec steel (white) or 304 stainless steel
- Guarantee: 2 years (except lamps & glue boards)
- Width: 67 cm
- Height: 39.5 cm
- Depth: 13.5 cm
- Weight: 7.5 kg
- FGF4SW – FUSION-4 White with shatter resistant lamp
- FGF4SS – FUSION-4 Stainless with shatter resistant lamp
- LL18WX – Standard Lamp
- LL18WS – Shatter resistant lamp
- MGFTR4 – Glue boards (Pack of 6)
Fly Shield 1
Insect-a-clear Fly-Shield Range
Order Codes
The Insect-a-clear Fly-Shield range comprises three models: Fly-Shield 1, 2 and 4. It is the ideal alternative to conventional high voltage machines.
Models 1 and 2 are suitable for front of house flying insect control where discreet management is required.
Model 4 is suitable for larger areas where suspending the machine provides an approximate 360 sq. metre coverage.
Have you seen the Coffee and Lunch Fly Shields?
Actual Size
W 34.5 × H 25 × D 11.5 cm
Specification
| Approx. Coverage | Up to 90 sq. metres |
|---|---|
| Voltage | 230V |
| Total Watts | 25W |
| Ballast | Electronic |
| Backlight Lamp | 1 × 18W UVA |
| Finish | Grained stainless |
| Construction | 430 stainless steel |
| Approved | EN60335-1:2012 & 2014/35EU |
| Guarantee | 2 years (except lamps and glue board) |
Packing Details
| Width | 35 cm |
|---|---|
| Height | 26 cm |
| Depth | 16 cm |
| Weight | 3 kg |
Replacement Order Codes
The manufacturer reserves the right to change specifications without prior notice. Terms and conditions apply.
/fly_shield_1_unit.png)

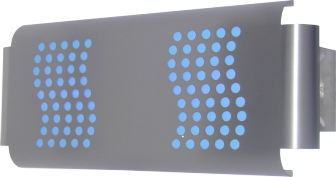

Fly Shield 2
Insect-a-clear Fly-Shield Range
Order Codes
The Insect-a-clear Fly-Shield range comprises three models: Fly-Shield 1, 2 and 4. It is the ideal alternative to conventional high voltage machines.
/fly_shield_2_unit.png)
Models 1 and 2 are suitable for front of house flying insect control where discreet management is required.
Model 4 is suitable for larger areas where suspending the machine provides an approximate 360 sq. metre coverage.
Have you seen the Coffee and Lunch Fly Shields?
Actual Size
W 60 × H 25.5 × D 14 cm
Specification
| Approx. Coverage | Up to 180 sq. metres |
|---|---|
| Voltage | 230V |
| Total Watts | 45W |
| Ballast | Electronic |
| Backlight Lamp | 2 × 18W UVA |
| Finish | Grained stainless |
| Construction | 430 stainless steel |
| Approved |
EN 60335-2-59:2003 + A1:06 + A2:09 EN 60335-1:2012/AC:14 + A13:17 |
| Guarantee | 2 years (except lamps and glue board) |
Packing Details
| Width | 60 cm |
|---|---|
| Height | 26.5 cm |
| Depth | 17 cm |
| Weight | 4 kg |
Replacement Order Codes
The manufacturer reserves the right to change specifications without prior notice. Terms and conditions apply.

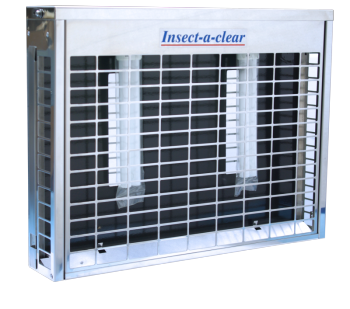

FUSION 2
Discreet Flying Insect Control Unit
The Insect-a-clear FUSION range comprises two models, the FUSION 2 and FUSION 4. It is the ideal alternative to conventional high voltage machines.
Unlike other insect control machines, the FUSION range is designed for quick and simple maintenance. Stainless steel retaining plates lift open easily, allowing glue boards to slide out and be replaced without difficulty.
When changing lamps, the front panel can be removed without the need for tools.
Featuring unique “thru board light technology”, lamps are visible from both sides of the unit, ensuring maximum attraction to flying insects.
/fusion_2_stainless_unit.png)

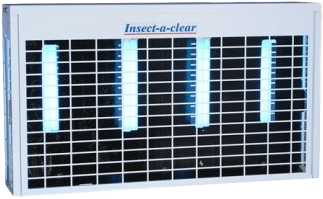

FUSION 4
High Performance Flying Insect Control Unit
The Insect-a-clear FUSION range comprises two models, the FUSION 2 and FUSION 4. It is the ideal alternative to conventional high voltage machines.
Unlike other insect control machines, the FUSION range features a design that makes maintenance quick and simple. Stainless steel retaining plates lift open easily, allowing glue boards to slide out and be replaced effortlessly.
When lamp replacement is required, the front panel can be removed without the need for tools.
With its unique “thru board light technology”, all lamps are visible from both sides of the unit, ensuring maximum attraction to flying insects.
/fusion_4_unit.png)
Fly Killer Comparison
Product Description
We will have the following comparisons:
| Fluorescent | LED | Comments |
|---|---|---|
| GLU-60 | GLU-10 | Description |
| GLU-10 | GLU-15 | Description |
| GLU-90 | GLU-80 | Description |
| Fusion 2 | Vanquish | Description |
| Fusion 4 | Vanquish | Description |
